SideScan

£393.63 VAT inc.
in stock

Product Code: SEN-SS4000W

• 4 x IP68 Side mount sensors
• 2 level proximity sensitivity
• Graduated audible warning
• 12v/24v compatible
• IP69K external module
• Environmental learning (100cm)
• 3 mount options included

Read Full Description

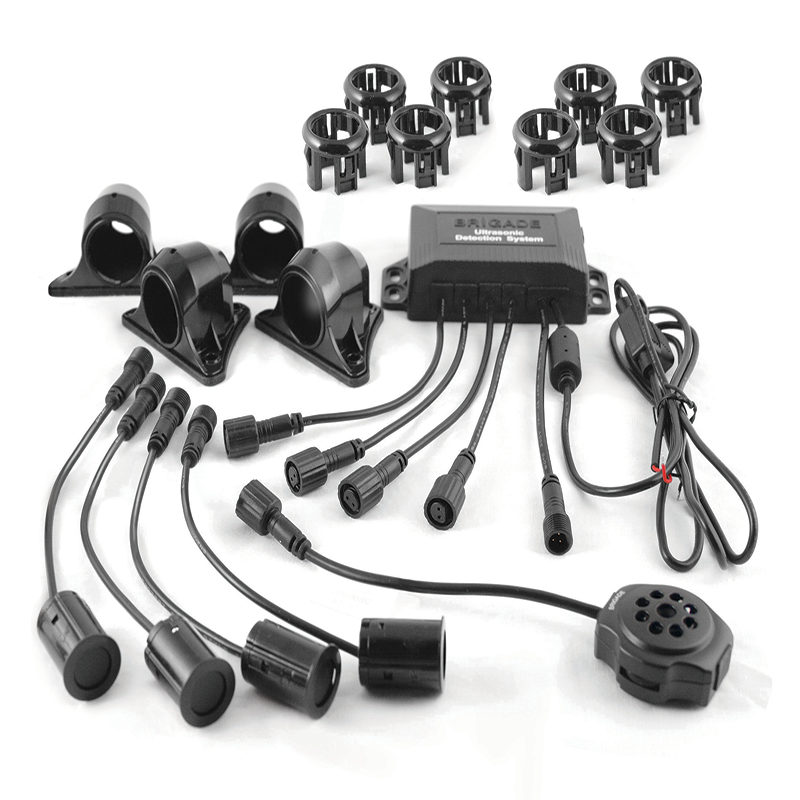

A side mounting sensor system with an audible warning of the vehicle’s distance from any object beside it. With a variety of mounting angles to adjust the standard flush sensor out up to 11° or an underhanging housing to cover all the possible side location angles.

Number of sensors 4
Detection Range 0 ~ 1m or 0 ~ 1.5m selectable
Operating Power 12/24v
Sensitivity 2 level selectable
Object detection 200 milliseconds
False Alarm Protection Environmental learning (up to 100cm protrusion)
Waterproof Rating Control Module: IP69K, Sensors: IP68
Alert Graduated Audible
Mounting Rings 0°, 11°, underhanging°
Buzzer Cable Length 10m
Sensor Cable Length 4 x 4.5m & 2 x 2.5m extensions
Operating Temp -40°C to +80°C
Certifications CE & EMC approved: E

Optional Extras

Articulated Vehicles
SK-15-04 – Truck/Trailer camera and sensor suzi cable kit
SK-UDS-05 – Truck/trailer sensor only suzi cable kit
UDS-10BC – Buzzer extension cable

Extensions
UDS-2.5BC – 2.5m Buzzer/display extension cable
UDS-10BC – 10m Buzzer/display extension cable
UDS-15BC – 15m Buzzer/display extension cable
UDS-2.5SC – 2.5m Sensor extension cable
UDS-4.5SC – 4.5m Sensor extension cable

Product Code: SEN-SS4000W
