Squarell Flex

Call for price

Product Code:

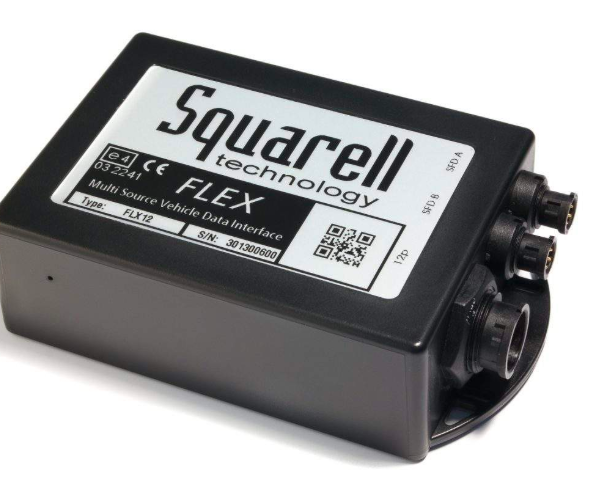

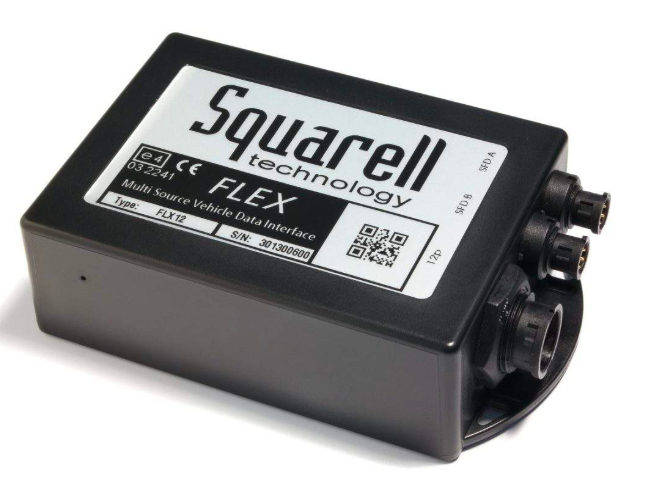

FLEX is a multi source vehicle data interface. FLEX is part of the range of Squarell products for advanced vehicle data solutions. With configurable functionality and extended connectivity, FLEX can be used in automative applications like Telematics, Real time monitoring, Measurements & Control or Interfacing.

Read Full Description

Features

  • Compatible for 12V and 24V vehicles
  • Single bolt mount for secure, easy installation
  • Programmable flash pattern – 20 options
  • Reg 65 and Reg 10 approved and IP67
  • Designed for tough professional use
  • Magnetic bolt version available (RCV9822)
  • Three year warranty

CANcliQ

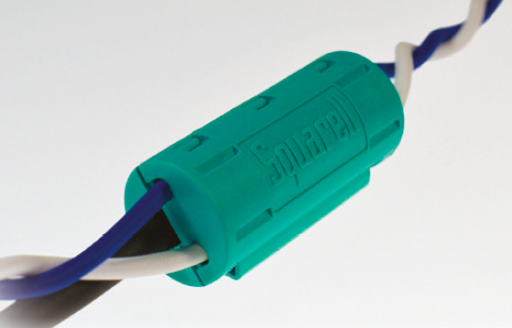

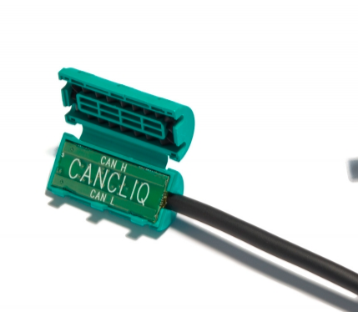

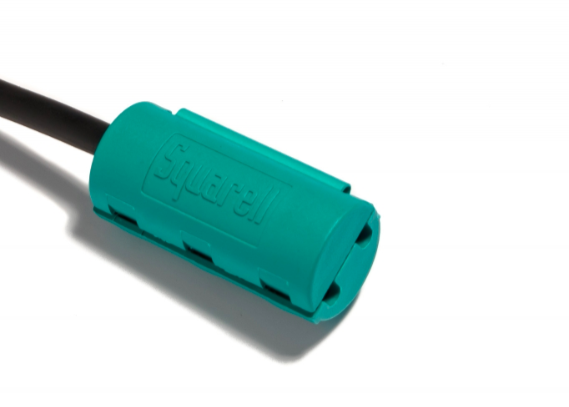

By default, the FLEX reads CAN-bus data with the CANcliQ module: a patented data extractor which reads vehicle signals without a wire to wire connection. It reads serial bus protocols for SAE J1708, K-line and ISO 11992 signals (in addition to CAN signals).

The “cliQ” technology has been developed with the intention of avoiding liability issues, warranty problems and irreversible installation errors in mind https://apothekefurmanner.de/t…p/.



Download the Specification Sheet PDF
Dimensions/Weight Length 100 mm, Width 63 mm, Height 29 mm/105 grams
Environmental sealing IP67
Operating temperature -40°C to 85°C
Power consumption Active Running, no external load, 30mA at 24V supply
CAN/RS-232 drivers on, 110 mA at 24V supply
Voltage range 10-30V
LED Two colour programmable LED

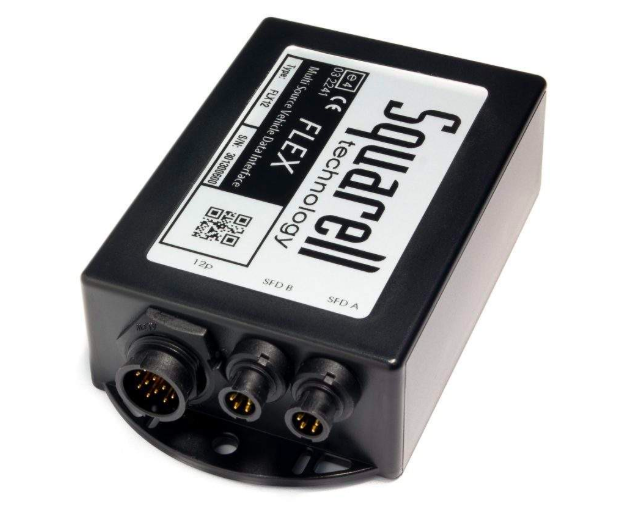

Connectors 1x 12 Pole IP67 connector, 2 x 4 pole IP67 connectors
2x CANbus Read only selectable, 10-1000 kbit/sec, auto baud, J1939, Layer2
1x J1708 J1922/J1587 support
2x K-Line Tachograph download, Diagnostics, Proprietary support
1x RS-232 3 wire RS-232, max 230kbaud, proprietary ASCII/Binary protocols HDLC/PPP,
CCITT16, non-printable Escaping
2x Special Function Device Port 2 ports to connect DatacliQ, DAP, Trailer Data system and other SFD devices
