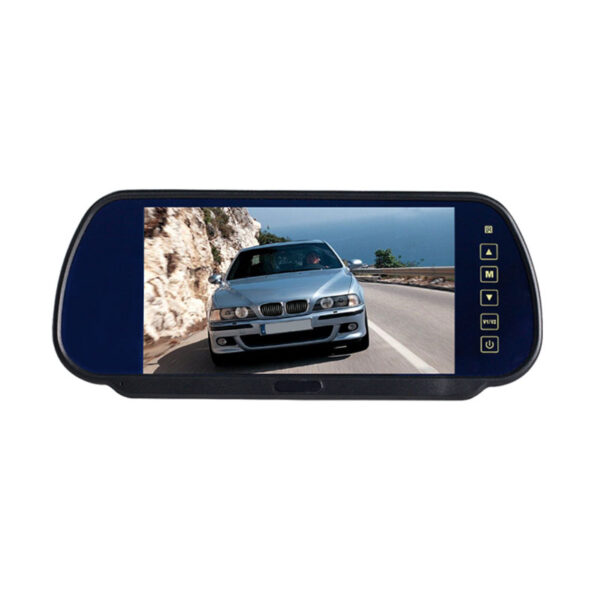

7 inch mirror monitor

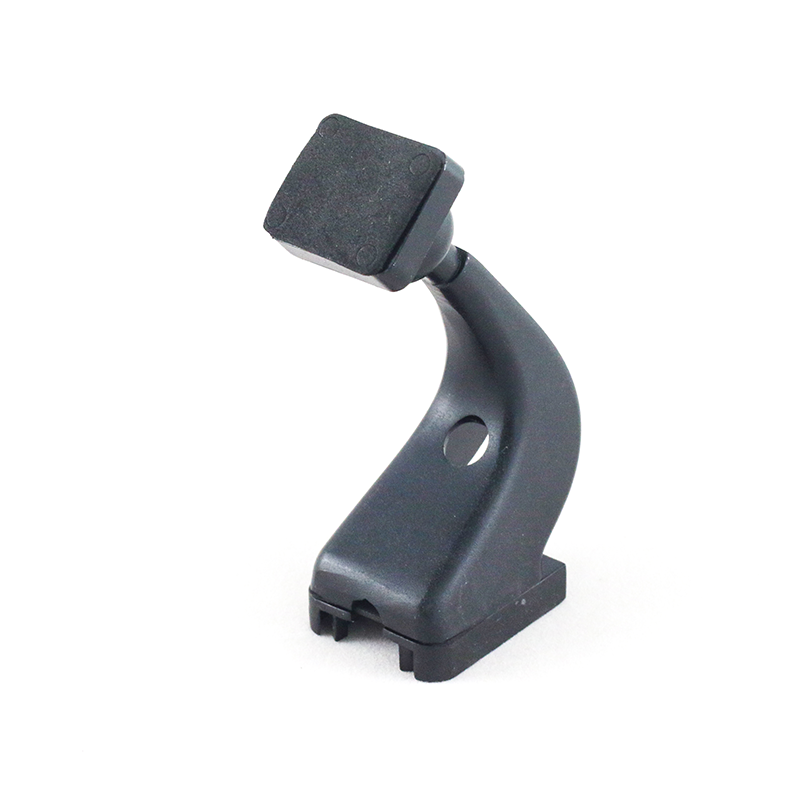

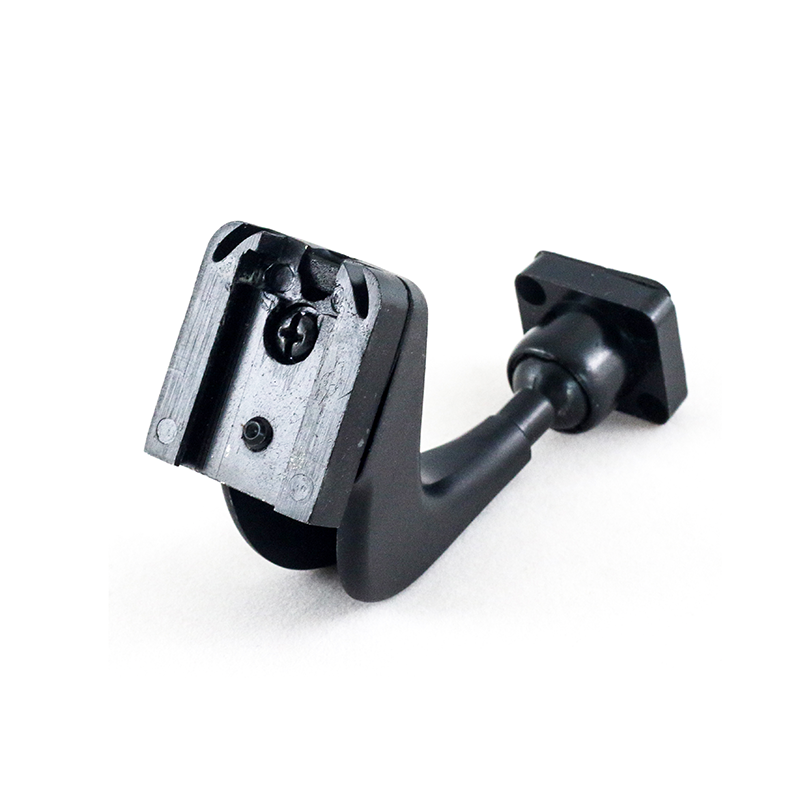

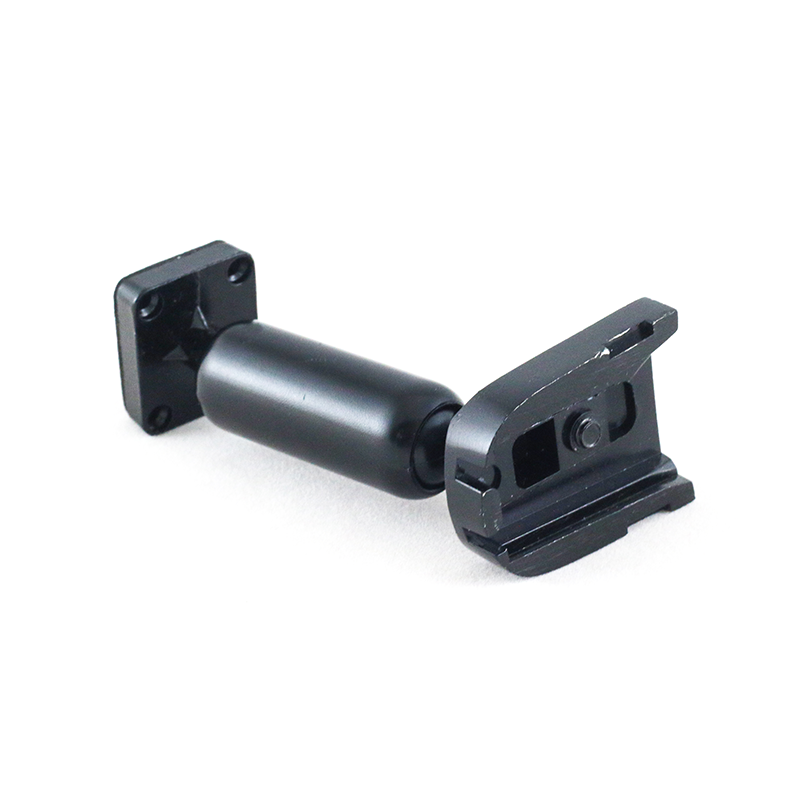

7″ Digital Colour Monitor with Mounting Bracket

Call for price

Product Code: SM4.2MM

Key Features

• 7” Digital Colour Mirror Monitor
• 2 AV Inputs (1 triggered)
• Screen Ratio 16:9
• PAL/NTSC auto switching
• Built-in speaker
• Viewing Angle 60/70/75/75o
• 12v-24v Operation
• 4 Pin Aviation Connection

Read Full Description

Tech 7″ Digital Colour Monitor with Mounting Bracket

A 7″ mirror monitor with 2 AV inputs, suitable for use in standard cars and LGV’s.

Product Specification

Screen 7″ Digital
Screen Ratio 16.9
Resolution 480 RGB 272
Black Light Luminance LED 260 cd/m2
Contrast 1000/1
View Angle up 60°, Down 70°, Left 75°, Right 75°
System PAL/NTSC (Automatic)
OSD Control Brightness, Contrast, Colour, Volume, Mode, Turnover
Language English, German, French, Spanish, Portuguese, Italian, Dutch, Simplified Chinese
Key Control Yes
Remote Control Yes
AV Inputs 2 Way External CVBS input, 2 Way Audio input
Trigger Single Trigger
Audio Built-in Speaker
Power 12-24v
Power Consumption 5w
Current Draw Standby 20mA, Max 600mA
Working Temperature -10° to +60°
Storage Temperature -20° to +70°
Dimensions 280mm x 89mm x 28.8mm

Product Code: SM4.2MM
