Universal Tablet Dock Havis

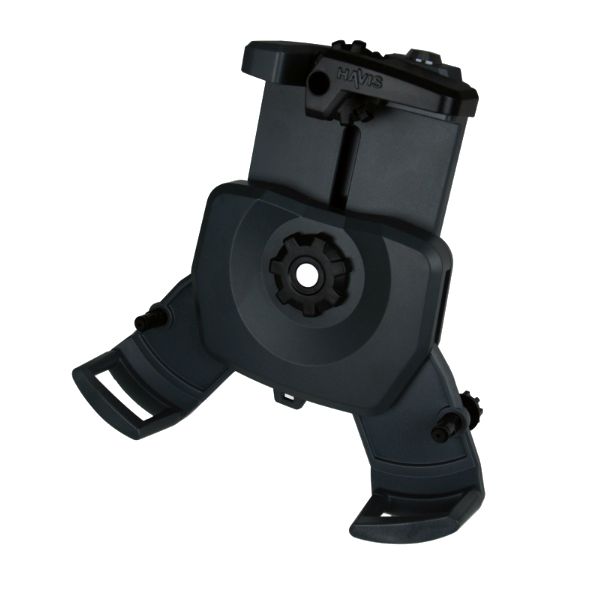

Havis Universal Tablet Cradle

Call for price

Product Code: CRD-DOCK-UNI
Read Full Description

Product Details:

  • Havis universal tablet cradle (no Electronics)
  • Patent pending.
  • Compatible with a large variety of 7-9.25″ tablets models, with & without protective covers.
  • Unique three point adjustment controls for ultimate versatility
  • Made of high performance pc-ABS thermoplastics resulting in outstanding strength, heat resistance, feature definition, and surface finish
  • Leg retainers contain fiber reinforced polymer for extra durability
  • Easy to use and customize to fit your computing needs
  • Overall footprint maximizes space inside your mobile workplace
  • Rounded corners and edges for added safety in case of potential accident
  • Easy to use latch handle for added safety and security inside your vehicle
  • Cable strain relief hole provided to allow for safe and secure power connectivity
  • Lock and key supplied for peace of mind theft deterrence
  • Havis highly recommends protecting devices with a cover, for accurate solution options measure with cover on.
  • Configure Your Computing Device
  • C-ADP-112 needed for attaching UT-301 to C-FAM-100 Series flex arm mount

Specifications:

  • Compatible tablet sizes: width – 7″ (17.8cm) to 9.25″ (23.5 cm), depth – 0.79″ (2.0 cm) maximum, height – dependent on tablet width, please see Compatibility Matrix under resources tab
  • VESA 75 hole pattern for mounting
  • Testing: impact test – crash simulation per SAE J1455, latch test – 1500 cycles at ambient, 20C and 60C.
  • Cradle dimensions (overall maximum): 10.1″ (26.7 cm) w x 7.8″ (19.8 cm) h x 2.4″ (6.1 cm) d
  • Gross Weight: 2.00 lbs

Product Code: CRD-DOCK-UNI
