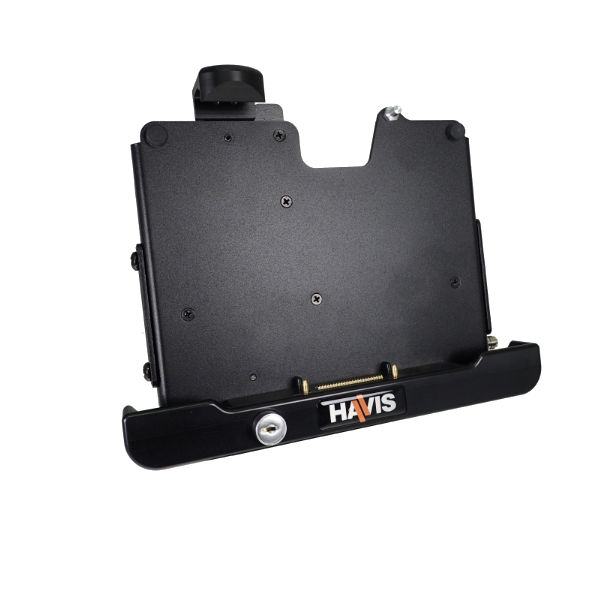

Havis Docking Station 1

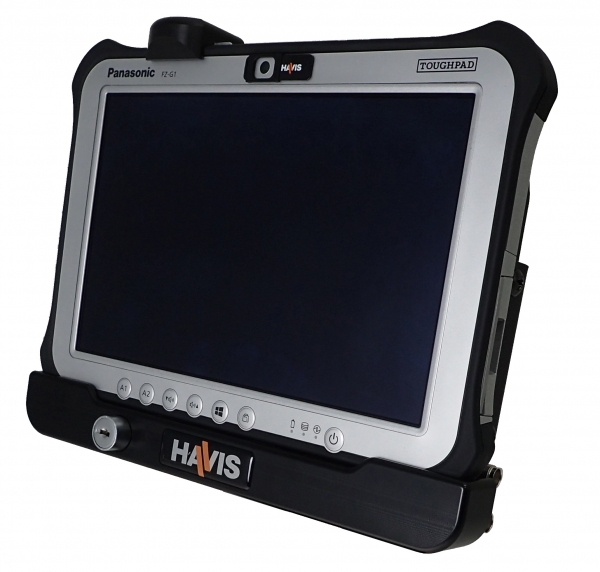

Havis Docking Station for Panasonic Toughpad FZ-G1

Call for price

Product Code: CRD-DOCK-PANFZG1
Read Full Description

Product Details:

  • Docking station for Panasonic Toughpad FZ-G1 with dual pass-through antenna (for mobile applications requiring a thinner product option)
  • Sturdy, all-metal construction consisting of billet and formed sheet aluminum and sheet steel
  • Machined Delrin latch block protects tablet from damage
  • Matte powder coat and anodized finishes reduce glare
  • Simple one-handed docking and undocking for ease of use
  • Slim line design minimizes tablet distance from dashboard of vehicle
  • Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station

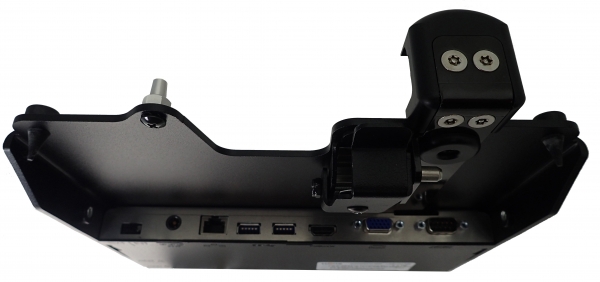

  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable management
  • Designed to fit all VESA 75 hole pattern mounting equipment
  • Lock and key supplied for peace of mind theft deterrence
  • Not compatible with optional tablet hand strap or extended battery

Specifications:

  • Compatible computer: Panasonic Toughpad FZ-G1
  • Dimensions: 11.13″ (28.3 cm) x 9.0″ (22.9 cm) x 2.9″ (7.3 cm)
  • Certifications: Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, e-marked via vca
  • Connectivity includes: serial: DB9 (9-Pin) connection (1), VGA: (1), USB: fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), HDMI (1), noise filtering: yes, emi filtering: yes, input voltage: 16V dc, antenna: dual hi-gain (tnc connector)
  • Product weight: 4.1 lbs.
  • Gross Weight: 5.00 lbs

Product Code: CRD-DOCK-PANFZG1
