Vehicle Kit:
Ford Transit Connect (2014-2016)
Pedestal System. Must order as is. There are no substitutions.

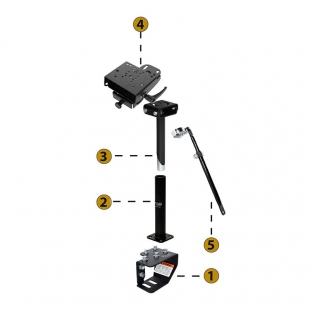

Kit Components:
1. Vehicle Base
Vehicle Base is a no-drill solution and attaches to the passenger side seat studs. Vehicle Base works with the new Ford F-150 Aluminum Body Style Truck. Designed using heavy gauge steel for long-term durability.
2. Lower Tube
The Lower Tube provides vertical clearance over the center console or the seat.
3. Upper Pole
Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
4. 6” Locking Slide Arm
Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2×4, NEC or AMPS hole patterns.
5. Support Brace
Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration.
Product Code: CRD-DOCK-FDTRAN15
