DW-1000-RX-4044

Call for price

Product Code:
Read Full Description

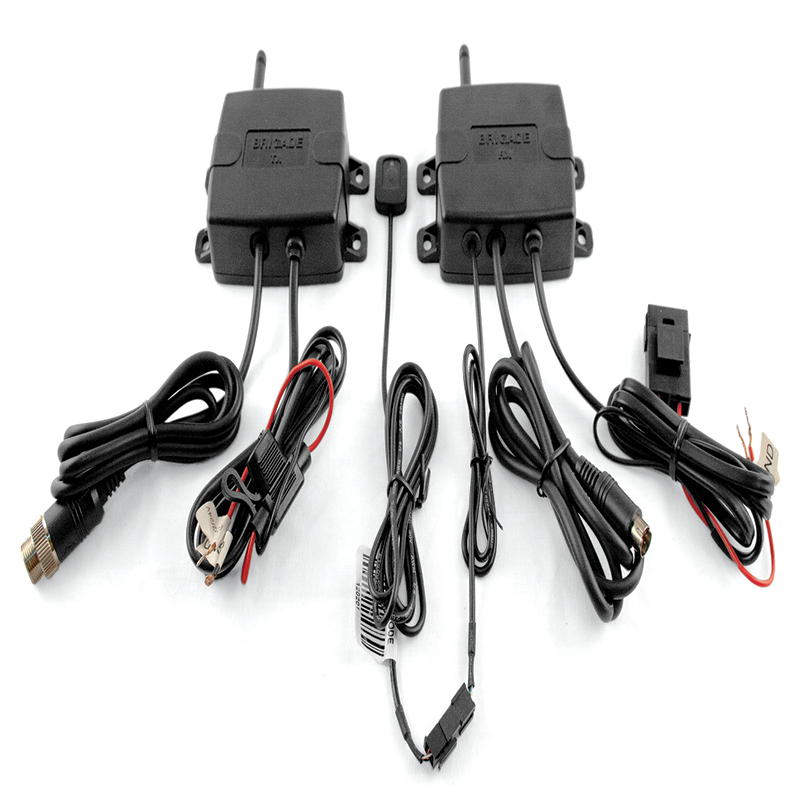

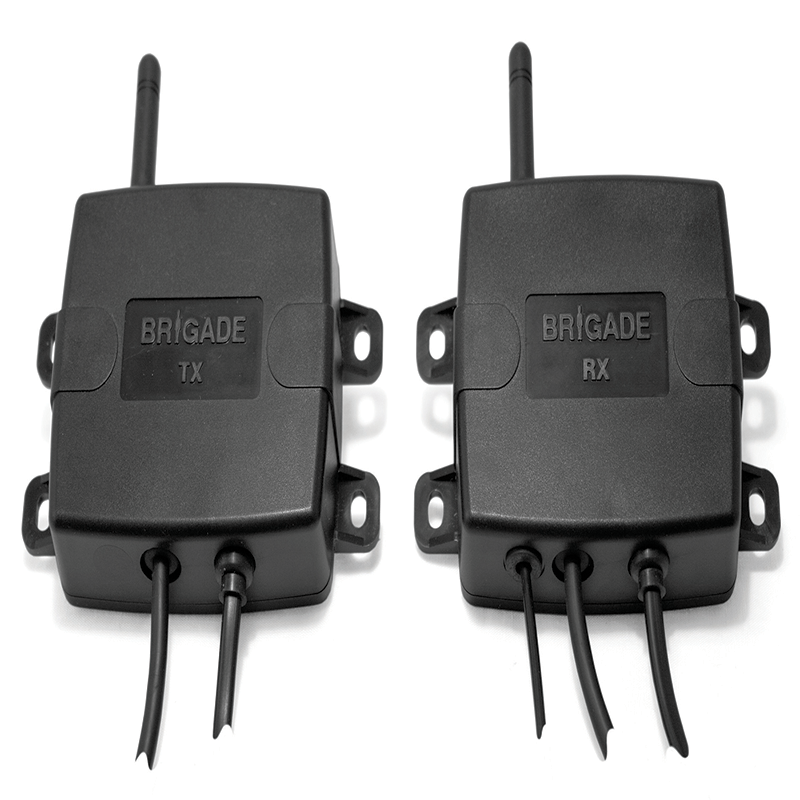

A wireless receiving module to allow extension free fitment of a wireless camera to a standard monitor. Ideal for use with articulated vehicles and interchangeable trailers (use with DW-1000-TX).

Operating Voltage 12/24v
Transmission Digital
Current Consumption 0.17Amps
Waterproof IP69K
Power Consumption 2.2w
TV System PAL/NTSC
Trigger Reverse Gear
Overall Dimensions 113mm (w) x 114mm (d) x 31mm (h)
Mechanical Vibration 6g
Mechanical Shock 20g
Operating Temp -40° to +70°C
Pairing Change Re-Pair sequence for connection to a different camera
Connection 4 Pin DIN (Outer ring running 5th pin earth)
