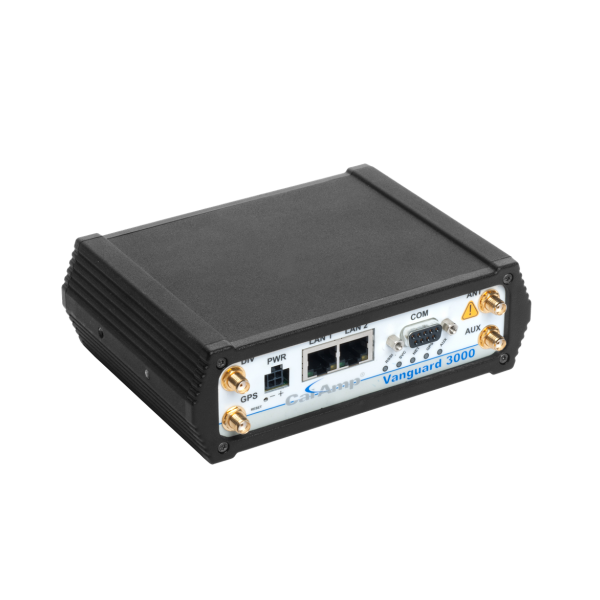

Calamp Vanguard 3000 – Multicarrier 3G Cellular Router

SIMPLE, RELIABLE WIRELESS CONNECTIVITY WITHOUT LIMITATIONS

Uniquely designed for operation on both GSM and CDMA networks, Vanguard 3000 offers more choice and redundancy in carrier networks. This single, flexible platform addresses a variety of wireless communications needs with serial to IP conversion, over-the-air configuration and system monitoring for optimal connectivity. This ready to deploy broadband router enables wireless data connectivity for up to two LAN and one serial device
over public cellular networks at 3G speeds.
Equipped for a broad range of fixed applications, Vanguard 3000 provides reliable connectivity for Programmable Logic Controllers (PLCs), Remote Terminal Units (RTUs), Ethernet web cameras or any other Ethernet or serial
device. For mobile applications, this intelligent broadband router incorporates an optional highly sensitive 16-channel GPS receiver and an intelligent algorithm that offers outstanding receive sensitivity and improved accuracy, integrity and availability of GPS signals – even when the vehicle is off. An optional, built-in WLAN access point also allows your tethered devices to remain connected even when you leave the vehicle.
This widely deployed wireless solution delivers countless software capabilities. OEMs may tailor the Vanguard by loading their application on the Open Developer Platform (ODP) which allows a Linux application to run on a partition of the embedded Linux operation system.

Vanguard 3000 Specification

GENERAL

Input Voltage 9 to 28 VDC
TX Power @13.8 VDC 350 mA (500 mA Mobile SKU)
RX Power @13.8 VDC 130 mA (240 mA Mobile SKU)
Diversity Support Rx Diversity
Security IPsec, GRE Tunneling, PPTP VPN RADIUS Client
Router MAC Filtering, DMZ, Dynamic DNS
Device Management SNMP, HTTP embedded web server
Certifications Military Specs, Hazardous Env

CONNECTORS/INTERFACE

LED Indicators RSSI, SVC, NET, GPS, AUX
Power 4-pin locking connector
Ethernet Dual 10/100 Mbps RJ-45, auto MDIX, auto-negotiate, & activity LED
Serial EIA-232F DE9 Female DCE, up to 115Kbps
I/O 2 digital inputs/outputs, 2 analog inputs, 2 outputs
Primary Antenna 50 Ohm SMA Female
RX Diversity Antenna 50 Ohm SMA Female
GPS Antenna 50 Ohm SMA Female (optional)
WLAN/WPAN Antenna 50 Ohm RP-SMA Female (optional)

MECHANICAL/ENVIRONMENTAL

Dimensions 4.5 (L)x6.0 (W)x1.9 (H) in, 11.4 x 15.2 x 4.8 cm
Weight 2.5lb, 1.13 kg
Temperature Range -30º to +70º C, -22º to +158º F
Humidity 5% to 95% non-condensing

CDMA TECHNOLOGY/BANDS

EVDO Rev A (IS-856-A) 800 MHz Cellular/1900 MHz PCS Downlink 3.1 Mbps; Uplink 1.8 Mbps
1xEVDO Rev0 (IS-856) 800 MHz Cellular/1900 MHz PCS Downlink 2.4 Mbps; Uplink 153.6 kbps
1xRTT (IS-2000) 800 MHz Cellular/1900 MHz PCSDownlink 153.6 kbps; Uplink 153.6 kbps

GSM TECHNOLOGY/BANDS

UMTS/HSPA Tri-band 850/900/1900/2100 MHz Downlink 7.2 Mbps, Uplink 2.0 Mbps
EDGE/GPRS Tri-band 850/900/1800/1900 MHz Downlink 236 kbps, Uplink 236 kbps
WLAN 802.11 b/g 2412-2462 MHz
WPAN 802.15.1 2402-2480 MHz
