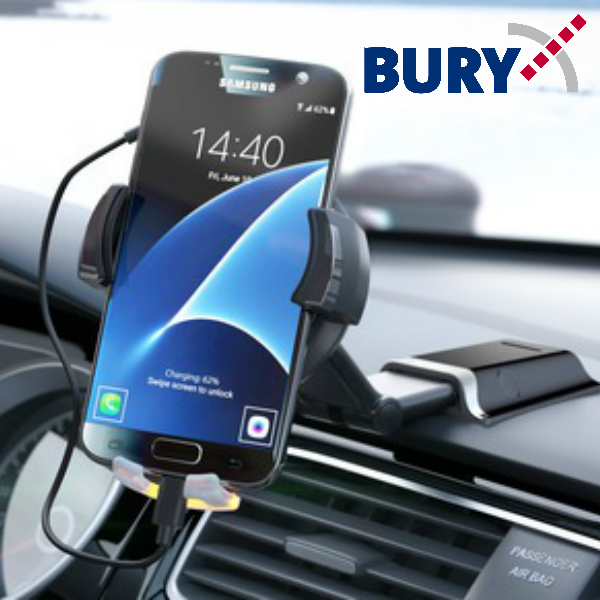

Bury Power Mount System – POWERKIT USB
Full Kit: Slot/Holder Arm/Holder for Mobile Phone with USB Charging Port
POWERCHARGE USB + POWERFLEX +POWERBASE
POWERCHARGE USB
- Operating Voltage : 10V-16V
- Max. current consumption : 2A
- Dimensions : 118,5mm x 125,2mm x 39 mm with adaptor
- Number of USB ports /types : 1 /TYP C
- Charging voltage via USB : 5V
- Charging current via USB : 3A
- LED indication : Yes
- Operating temperature range : -20C – + 70C
- POWERCHARGE USB
POWERFLEX
- Operating Voltage : 10V-16V
- Dimensions total : 45mm x 153mm 45mm
- Inclination angle of the consumption : All axes +/- 100 , pivot +/-35
- Rotation angle : +/- 100
- Operating angle temperature range : -20C – + 70C
POWERBASE
- Operating Voltage : 10V-16V
- Dimensions total : 61mm x 76mm X 15mm
- Mounting type : Adhesive bond; screw connection
- Operating angle temperature range : -20C – + 70C
- POWERBASE with removable double-sided adhesive tape (1 x extra adhesive tape)
Scope of delivery:
- 1 x cable with car charger , 1 x cable with open (not preassembled) cable head for a permanent installation
- 2 Screws for permanent installation
- 2 Safety clips and safety mountings
- Branch connector
- Operating manual
- Charging cable (USB C type for micro-USB)
- Operating manual
Product Code: PK-POWERKIT-USB
