Bury Power Mount System – POWERKIT Qi

Full Kit: Slot/Holder Arm/Holder for Smart Phone with Wireless Charging (Qi)

POWERCHARGE Qi + POWERFLEX + POWERBASE

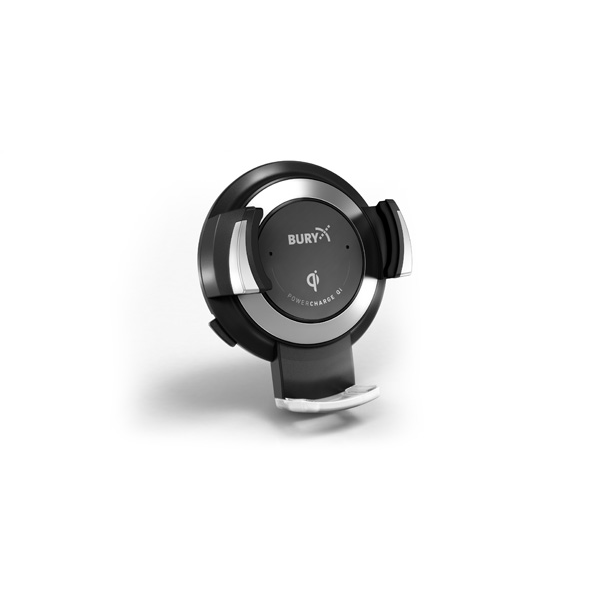

POWERCHARGE Qi

• Operating Voltage : 10V-16V
• Max. current consumption : 2A
• Dimensions : 118,5mm x 125,2mm x 39 mm with adaptor
• Charging Performance : 5W
• Current Via USB : 3A
• Charging Options : Either inductive or though USB (USB has a priority)
• Number of USB ports /types : 1 /TYP C
• LED indication : Yes
• Foreign object detection (FOD) : Yes
• Operating temperature range : -20C – + 70C

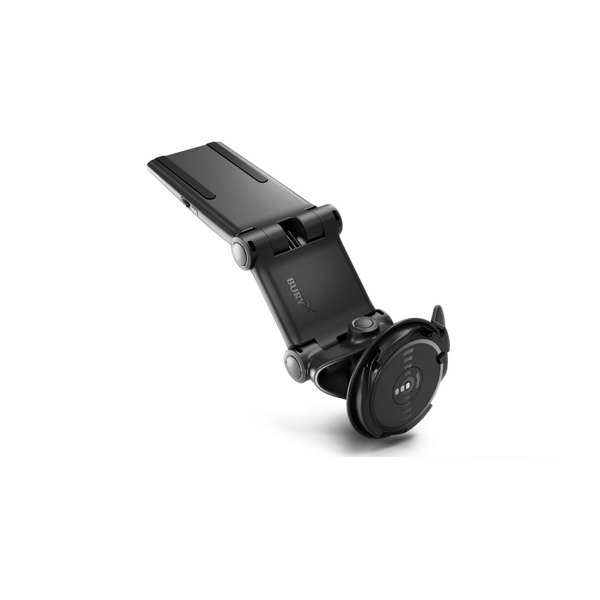

POWERFLEX

• Operating Voltage : 10V-16V
• Dimensions total : 45mm x 153mm 45mm
• Inclination angle of the consumption : All axes +/- 100 , pivot +/-35
• Rotation angle : +/- 100
• Operating angle temperature  range : -20C – + 70C

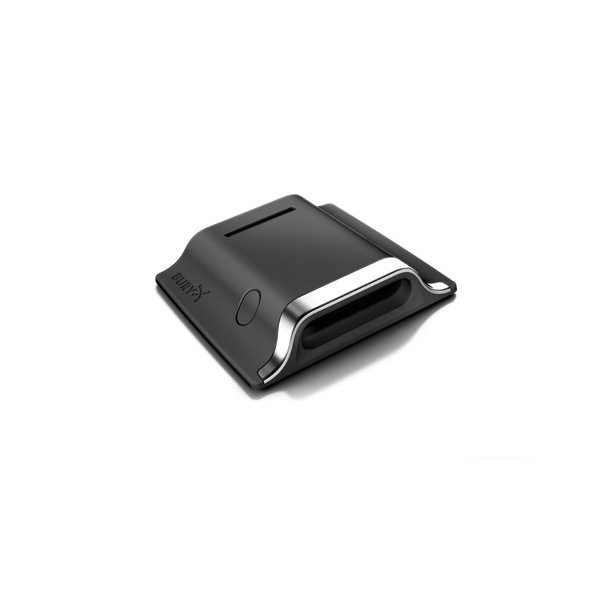

POWERBASE

• Operating Voltage : 10V-16V
• Dimensions total : 61mm x 76mm X 15mm
• Mounting type : Adhesive bond; screw connection
• Operating angle temperature  range : -20C – + 70C
• POWERBASE with removable double-sided adhesive tape (1 x extra adhesive tape)

Scope of delivery:

• POWERCHARGE Qi
• Charging cable (USB C type for micro-USB)
• Operating manual
• POWERFLEX
• Operating manual
• 1 x cable with car charger , 1 x cable with open (not preassembled) cable head for a permanent installation
• 2 Scews for permanent insatllation
• 2 Safety clips and safety mountings
• Branch connector
• Operating manual

Product Code: PK-POWERKIT-QI
