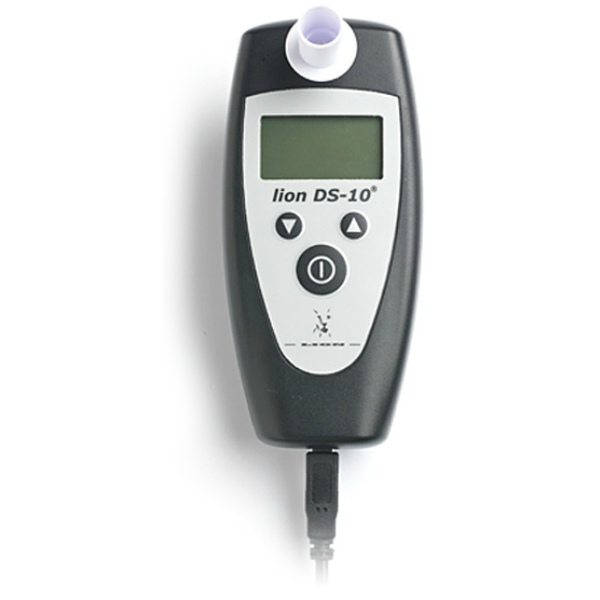

Alcolock DS-10

Call for price

Product Code: SAF-ALCDS10

Key Features

  • The DS-10 automatically samples deep-lung air.
  • 12V/24V input to Immobiliser
  • 150mm x 71mm x 32mm dimensions
  • 1 litre breathe sample volume
  • e-marked
Read Full Description

Alocolock DS-10

The Alcolock® DS®-10 is a tethered alcohol breathalyser which is connected direct to a vehicle immobiliser. This unit is designed to prevent any driver from starting the vehicle while over the pre-set alcohol limit, by giving a simple breath sample.

System Operation

From a breath sample, the Alcolock® measures the amount of alcohol present which must be under a pre-set level to enable the vehicle to operate. The Alcolock® can be configured to accommodate any level from zero alcohol present, through to the legal limit, depending on the policy of the company or organisation. In the event of the Alcolock® detecting an excessive alcohol reading and the vehicle being immobilised, the system will re-set itself and be ready for a further breath sample to analyse. As soon as the Alcolock® reads a sample under the pre-set limit the vehicle will start and be able to operate normally.

Product Specification

  • Analytical principle: Lion fuel cell sensor for alcohol analysis.
  • Measuring range: 0.02 to 1.00mg/litre BrAC
  • Breath sampling: The DS-10 automatically samples deep-lung air.
  • Analytical response: Within 15 seconds, but within 10 seconds at the ‘zero’ alcohol level.
  • Recovery time: Less than 150 seconds at 0.5mg/litre BrAC.
  • Operating temperature: -5 ºC to +65ºC.
  • Storage temperature: -20 ºC to +65ºC.
  • Power supply: 12V/24V input to Immobiliser ,5V via USB cable from immobiliser to handset
  • Operating Humidity: 10 to 95%, RH non-condensing.
  • Operating Barometric pressure range: 800 to 1,100hPa
  • Calibration Period: Minimum every 6 months. (12 months under qualification)
  • Display: LCD graphics dimensions 47mm x 28mm, 128 x 64 pixels, with backlighting.
  • Audible beeper: Provides auxiliary warning messages.
  • Microcontroller: H8/3687
  • Memory: The last 5000 test results are stored in memory for later recall if required.
  • Memory output: Via cable to product specific download software.
  • Warm-up time: The unit will come ready in <40 seconds @ 200C
  • Disposable mouthpiece: Simple disposable easy fit HDPE mouthpiece tube.
  • Vibration: Meets EN16750-3 4.1.3.2.4 (Qualification ongoing)
  • Drop: Meets ISO16750-3, 4.3 (Qualification ongoing)
  • Software Configuration: Various software settings may be configured using an external PC and configuration software. Check with Alcolock ® GB for updated releases.
  • Hardware Configuration: The DS-10 has digital potentiometers. These are automatically set in software.
  • Dimensions: 150mm x 71mm x 32mm.
  • Weight: 150g, (Handset only)
  • Breath sample volume: 1.0 litres (configurable)
  • Automatic power down: 10 minutes (1 minute – Following a breath sample)
  • System approvals: e-marked, EN 50436-2 ongoing

Product Code: SAF-ALCDS10
